Icom Accessory Breakout Board
Icom Accessory Breakout Board
Couldn't load pickup availability

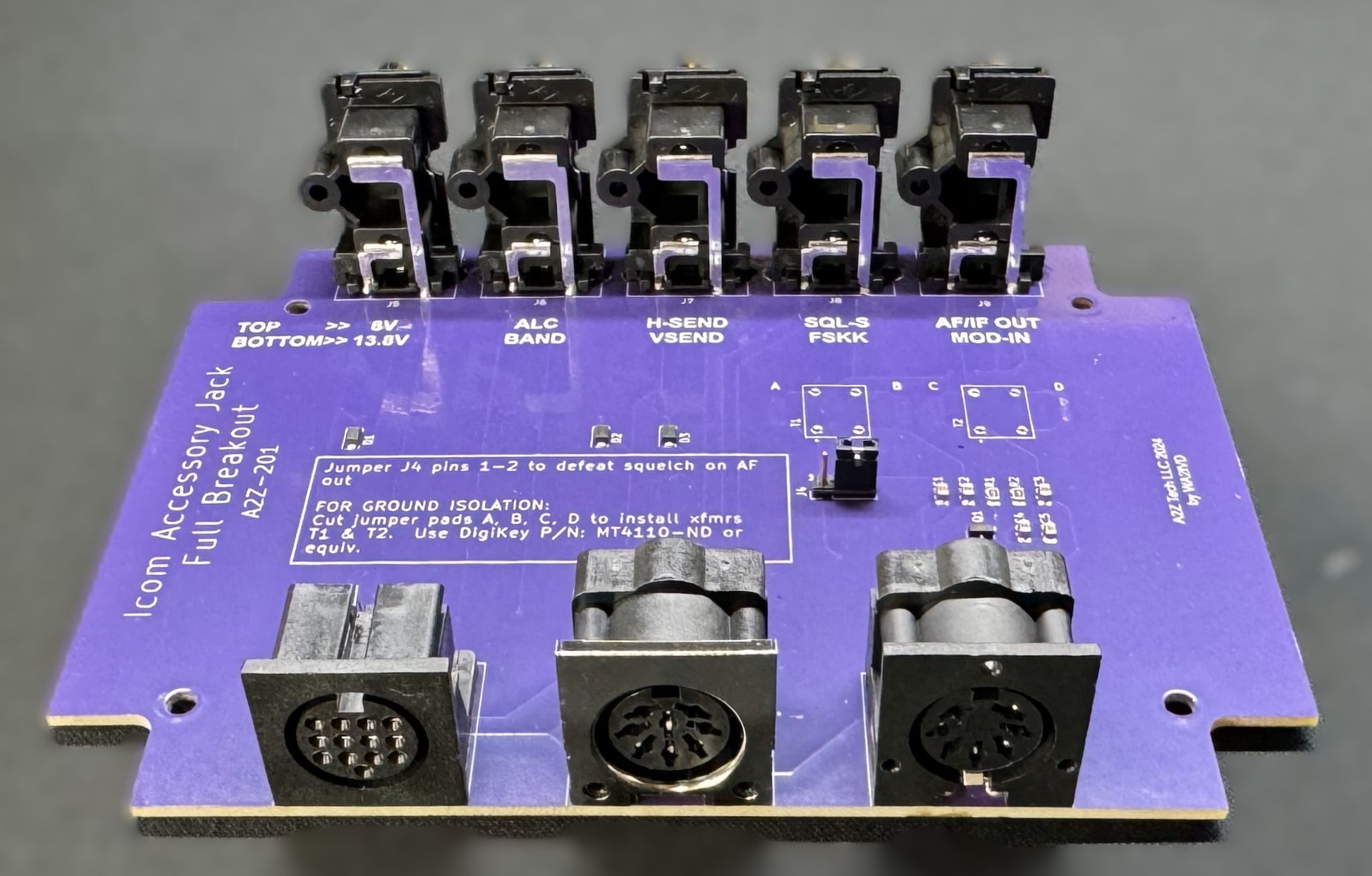

Full Accessory Connector breakout for these Icom radios:
IC703, IC706, IC706mkiig, IC718, IC746, IC756, IC756PRO, IC756PRO-II, IC756PRO-III, IC775, IC775DSP, IC7000, IC7100, IC7200, IC7300, IC7410, IC7600, IC7610, IC7700, IC7800, IC7850, IC7851, IC9700
And any other Icom radio with 7 & 8 pin DIN or 13 pin DIN accessory connectors.

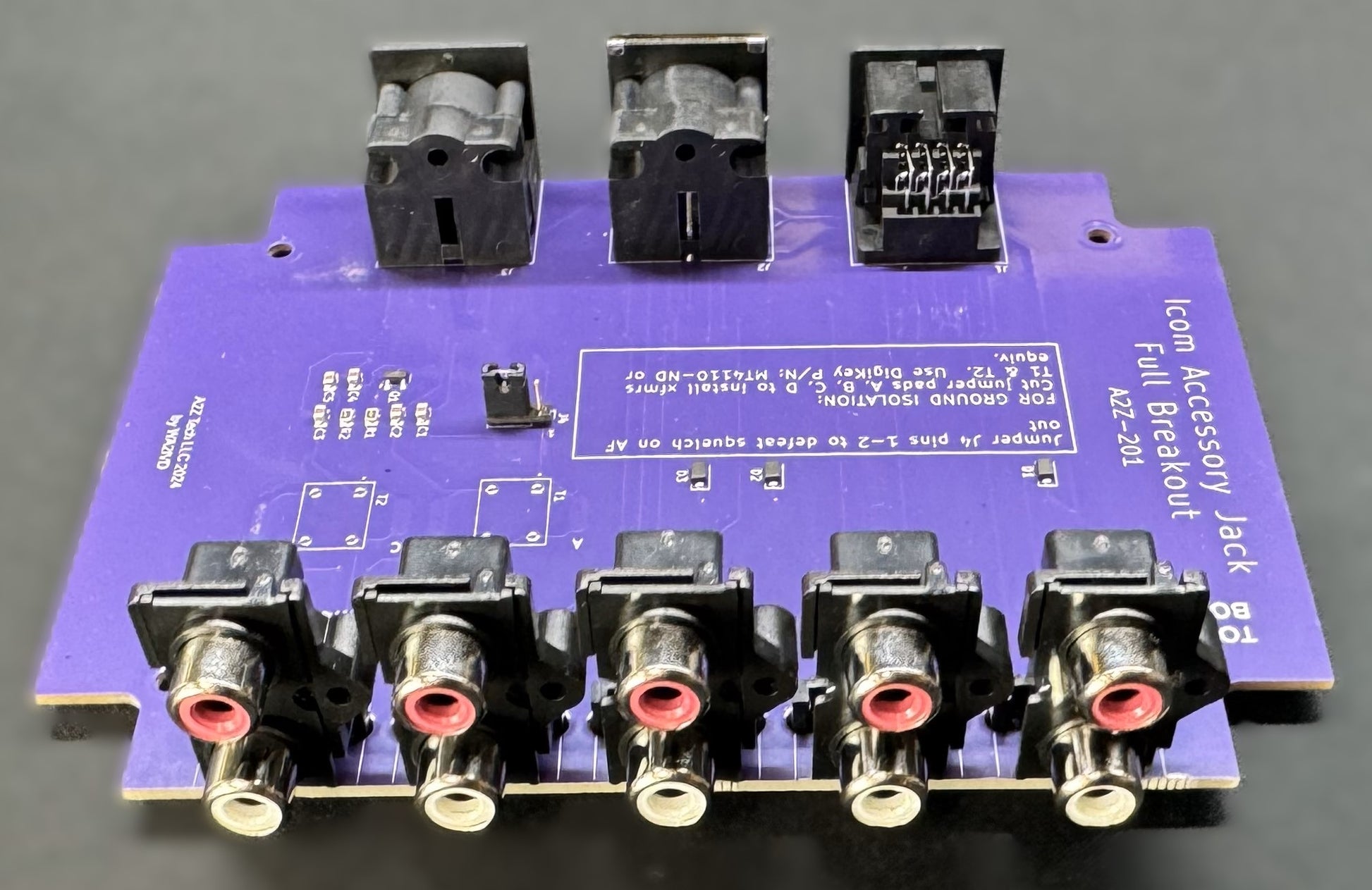

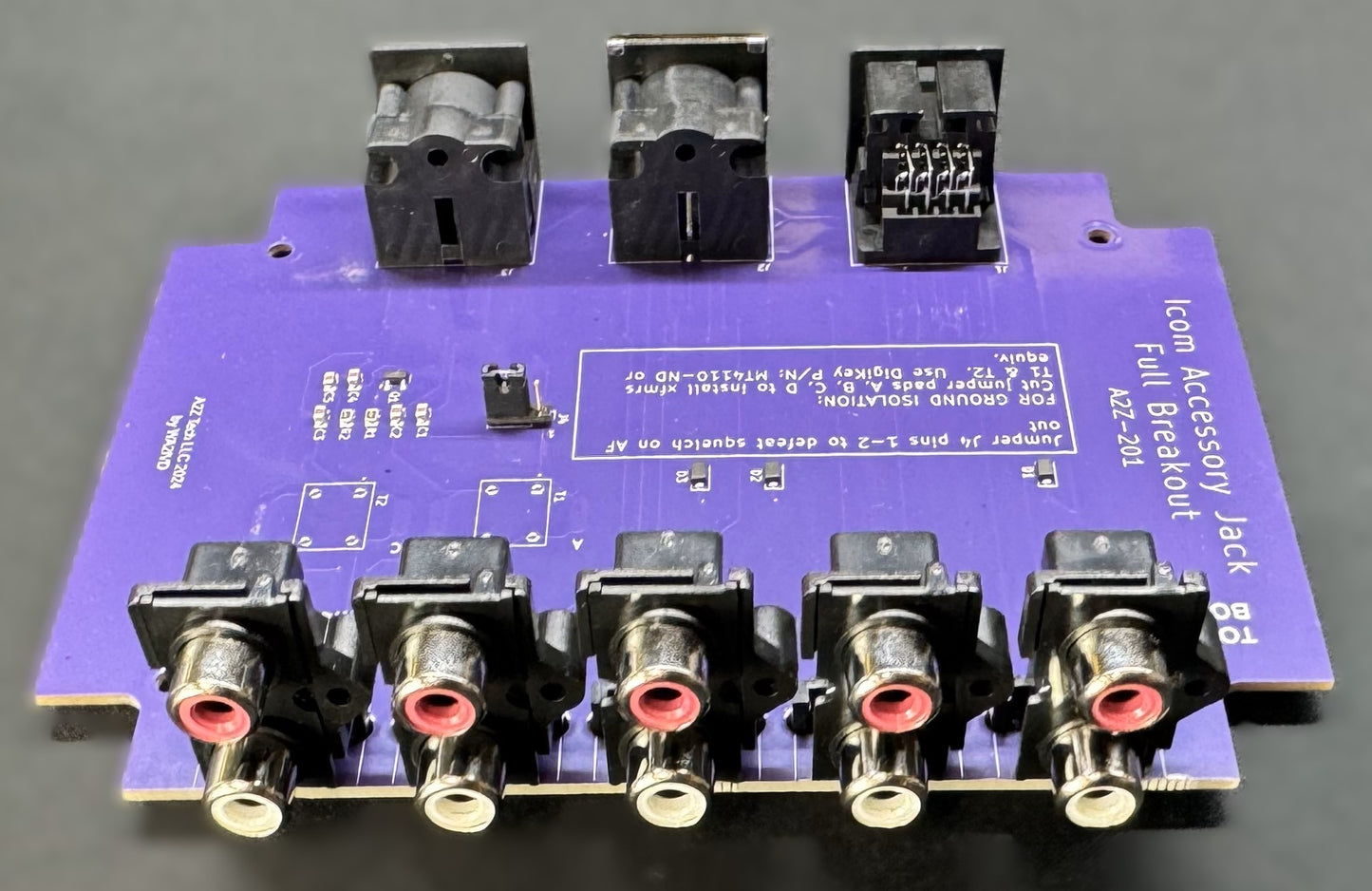

Brings all published signals out to individual RCA phono connectors for easy connection to your custom projects or experiments!

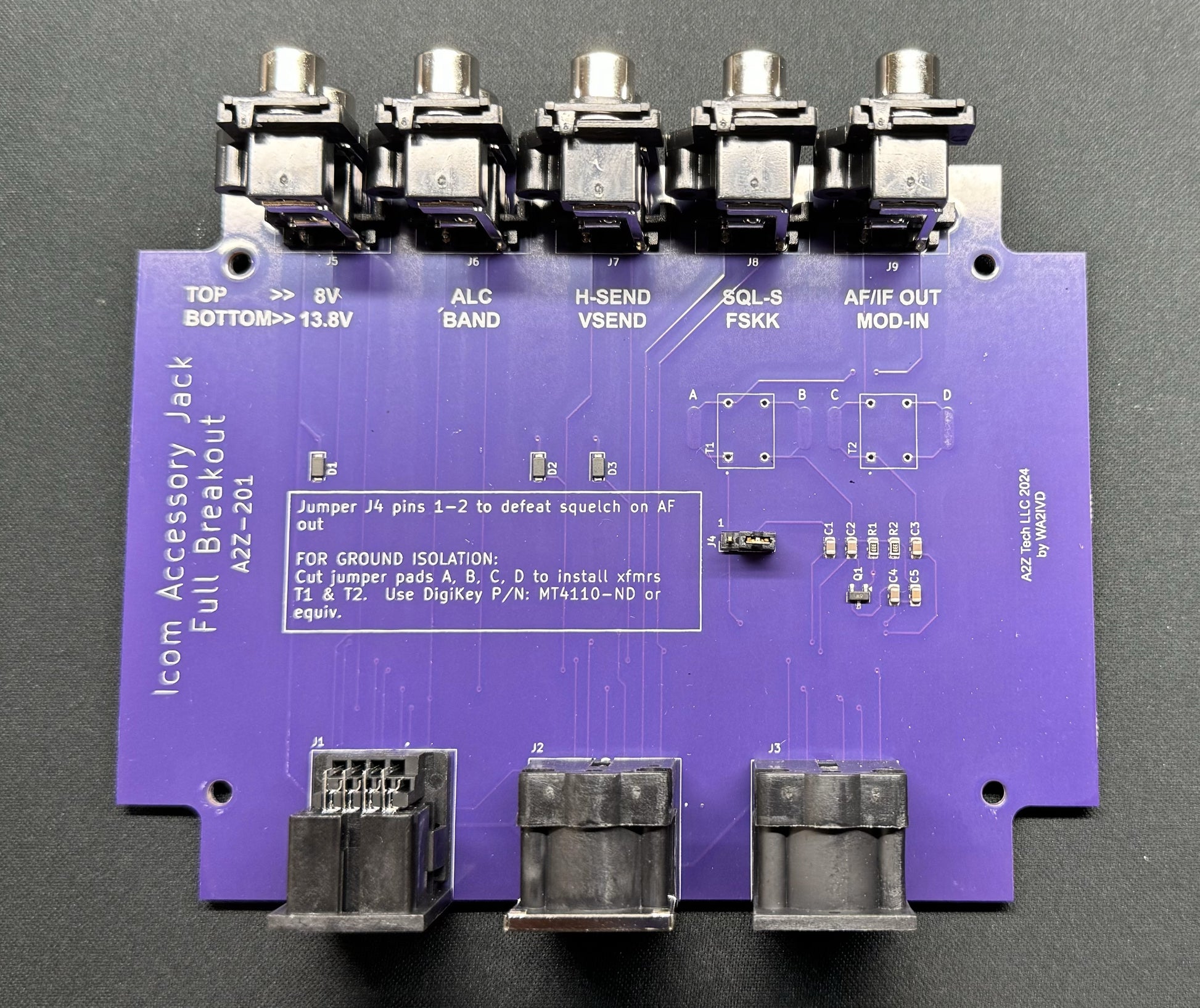

- Includes ALL published signals
- Fully assembled PC board
- Audio in & out are capacitively isolated
- Provisions for audio transformers for full ground isolation
- Audio output mute circuit for radios that don't include squelched audio
- Provides Icom OPC-599 adapter functionality for 13 pin DIN radios
Requires male-to-male 13 pin DIN or 7 and 8 pin DIN cables depending on your radio model. DIN cables are NOT included.
Get our DIN-13 Male to Male cable for only $10 when you order it with the Icom Accessory Breakout. Discount applied at Checkout.

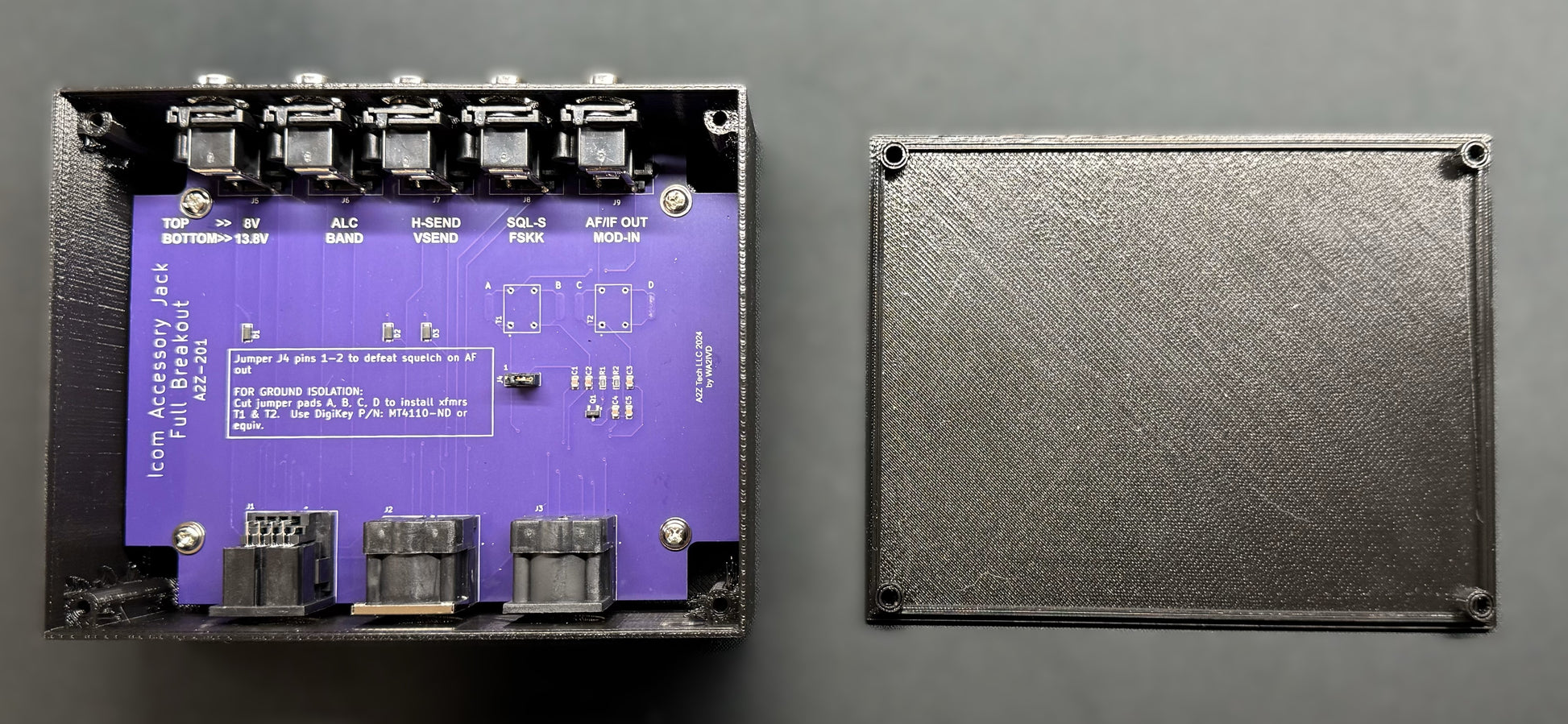

An enclosure is NOT included. STL files are available to 3D print an enclosure, if desired. The circuit board is sized to fit in an LP-70 box from Polycase.com. Standard polycase enclosures do not have pre-cut connector holes.
NEW 3D Print File. This file includes signal names engraved on the lid. It is a single .3MF file that includes the box and the lid: Box with Engraved Lid
3D print files: Box STL File Box Cover STL File
User manual/circuit description: User Manual
