Smart Power Switch SPS-1

Protect and control your station DC power with the Smart Power Switch SPS-1

Includes USB-C Interface!

October 2026 update
The pre-order units have shipped!  Thank you for your patience and support.

Keep your transceivers, accessories, and other sensitive 12-volt electronics safe with the SPS-1 — a solid-state smart power switch and protection device. Unlike traditional fuses and mechanical circuit breakers, the SPS-1 uses a solid-state Infineon PROFET™ automotive-grade switch paired with a microcontroller that monitors voltage and current 1,000 times per second.

Three layers of automatic protection:

• Instant Overvoltage Shutoff: Reacts within 1 millisecond to protect sensitive components.


• Smart Fuse Overcurrent Protection: Configurable from 5 to 35 amps without chasing down blown fuses.


• Undervoltage Monitoring: Prevents erratic operation when your power supply sags.

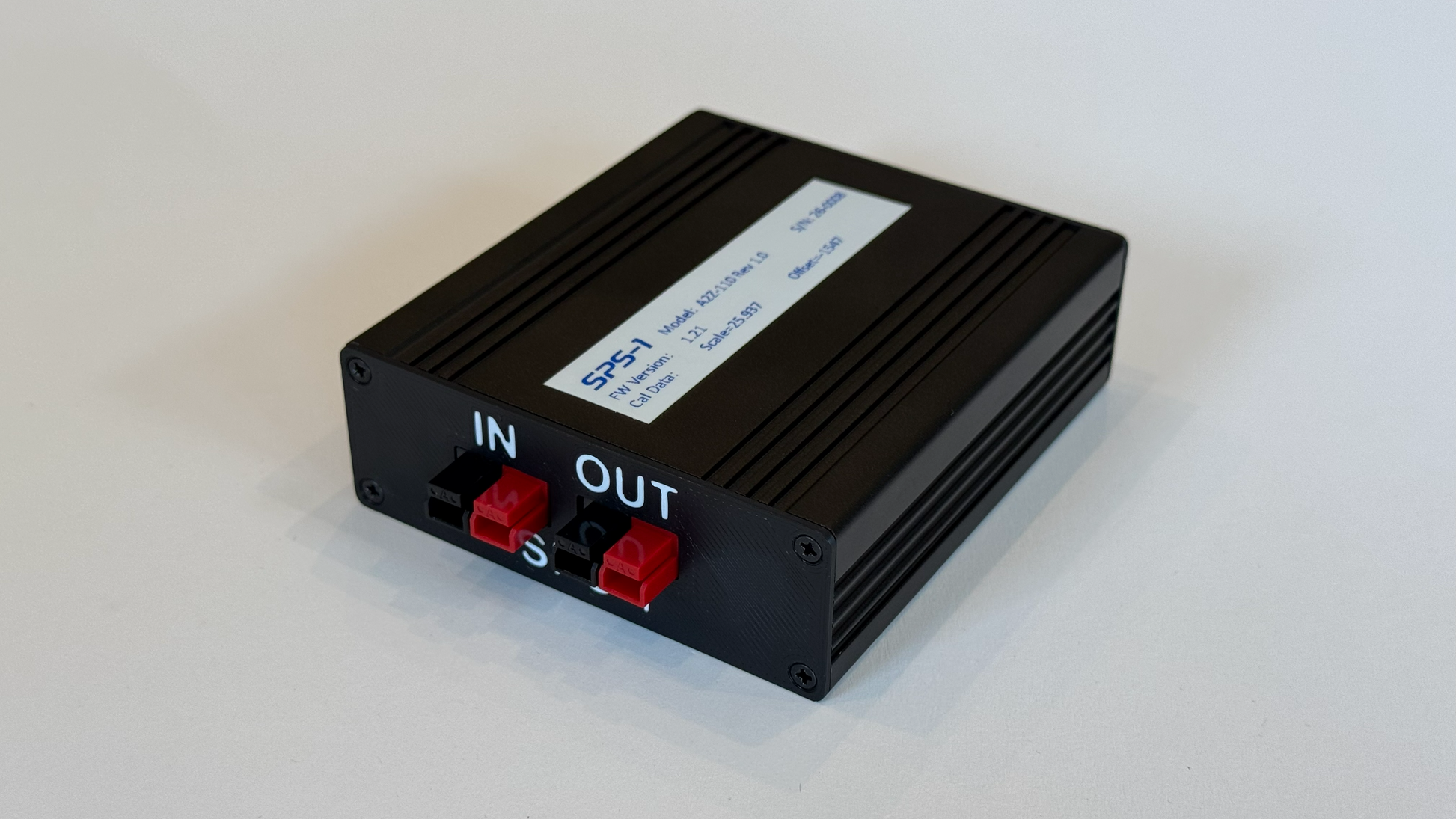

No welded contacts, no fuses to replace—just fast, reliable protection with industry-standard Anderson Power-Pole connectors.

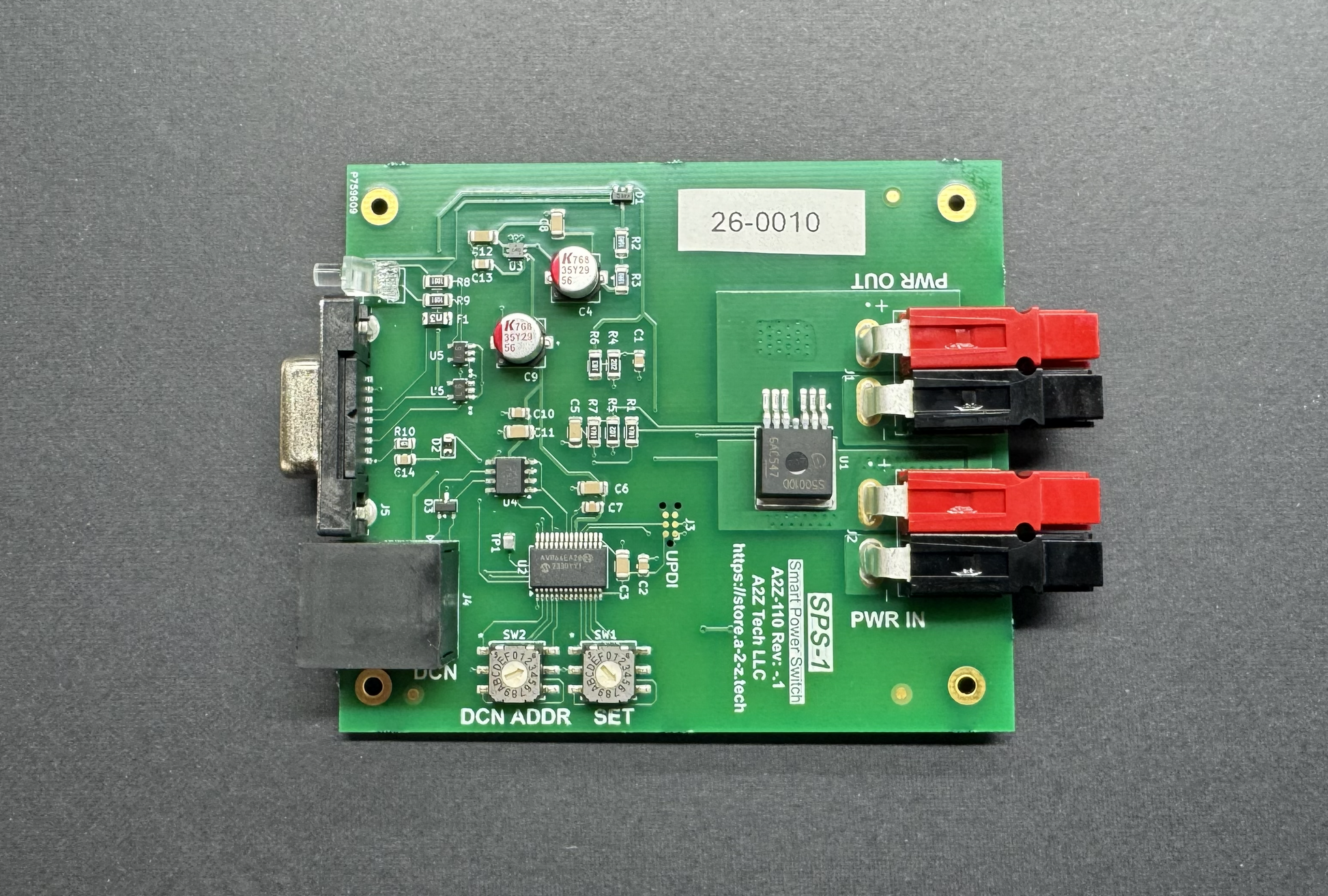

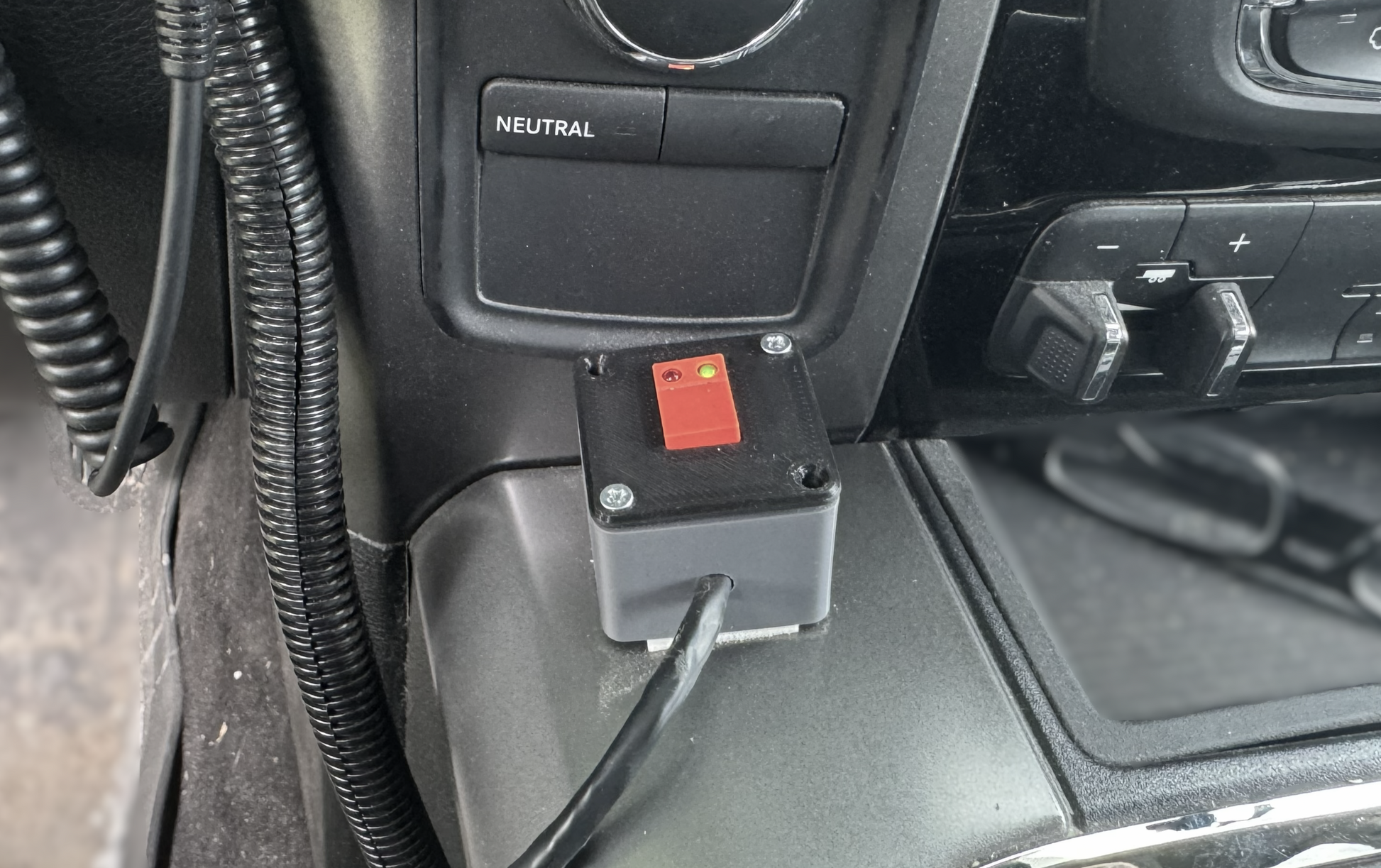

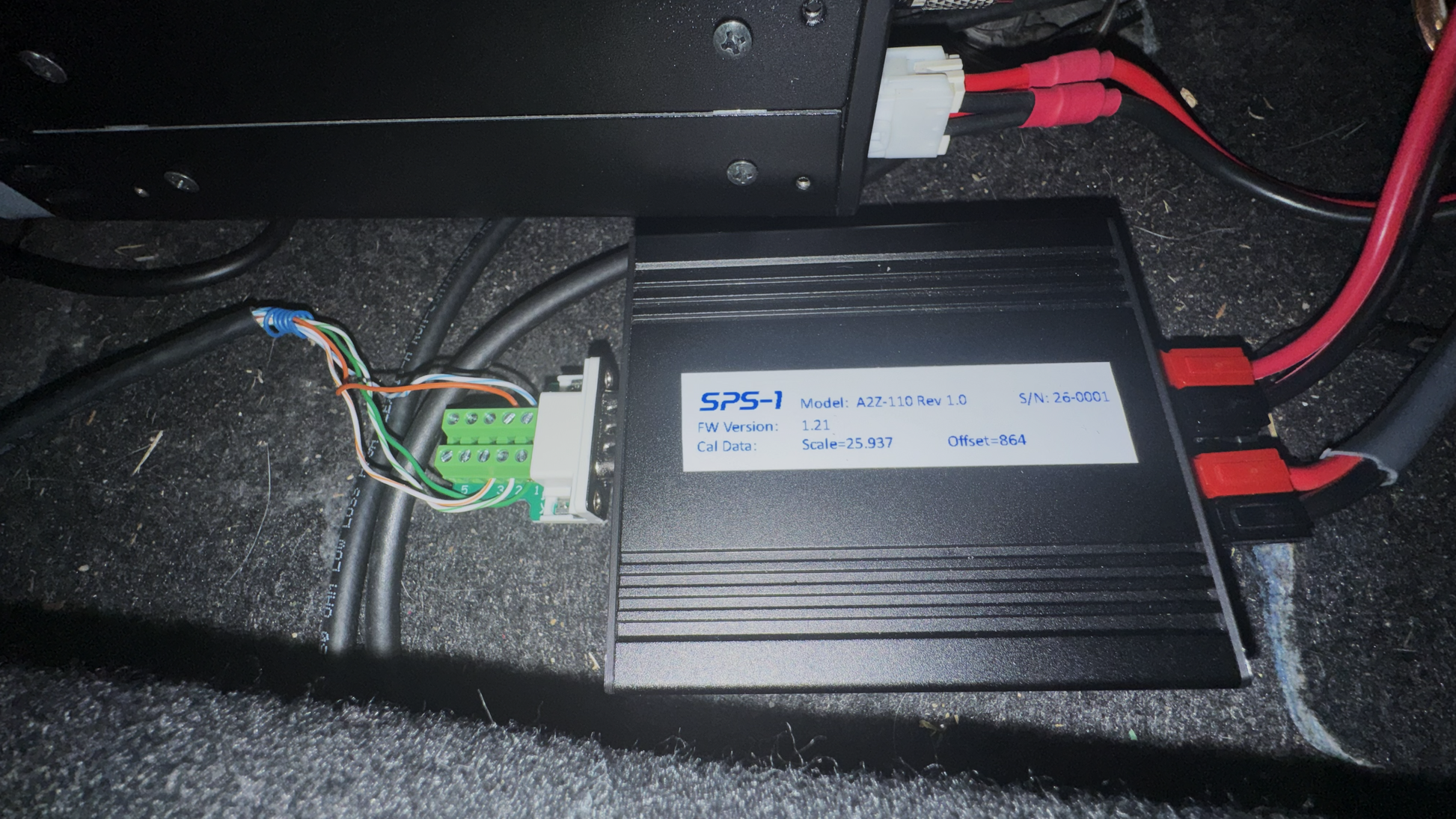

The SPS-1 is equally at home in a fixed shack or a mobile installation. A simple rotary switch on the board lets you dial in your current limit and operating mode without any software. For mobile operators, Mobile Mode automatically powers down your radio after the vehicle is turned off and brings it back up when charging resumes — no relay wiring or ignition tap required.

Easily configure all parameters through a USB port with the free online configuration tool.

Click here to check out the online configuration tool

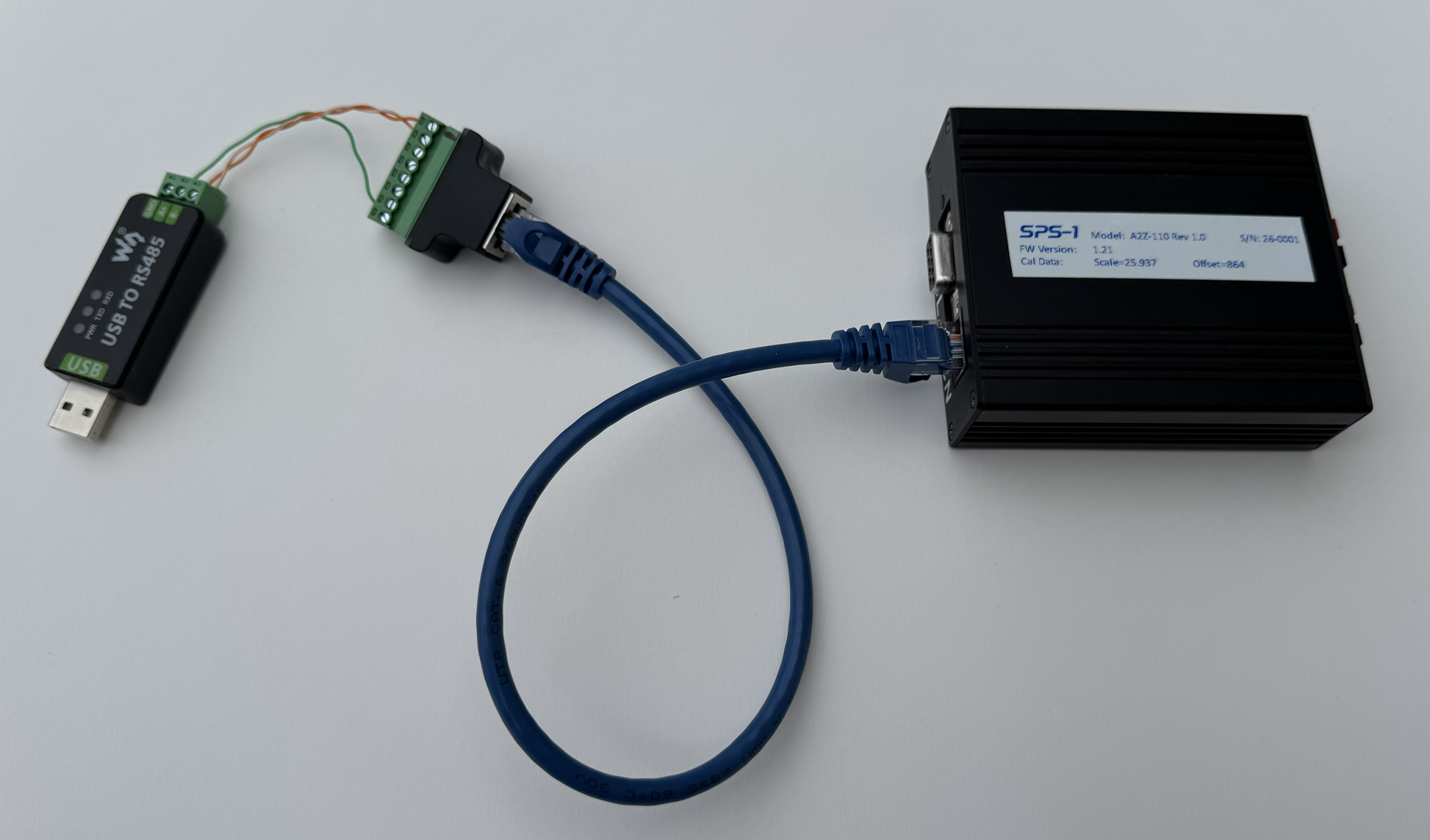

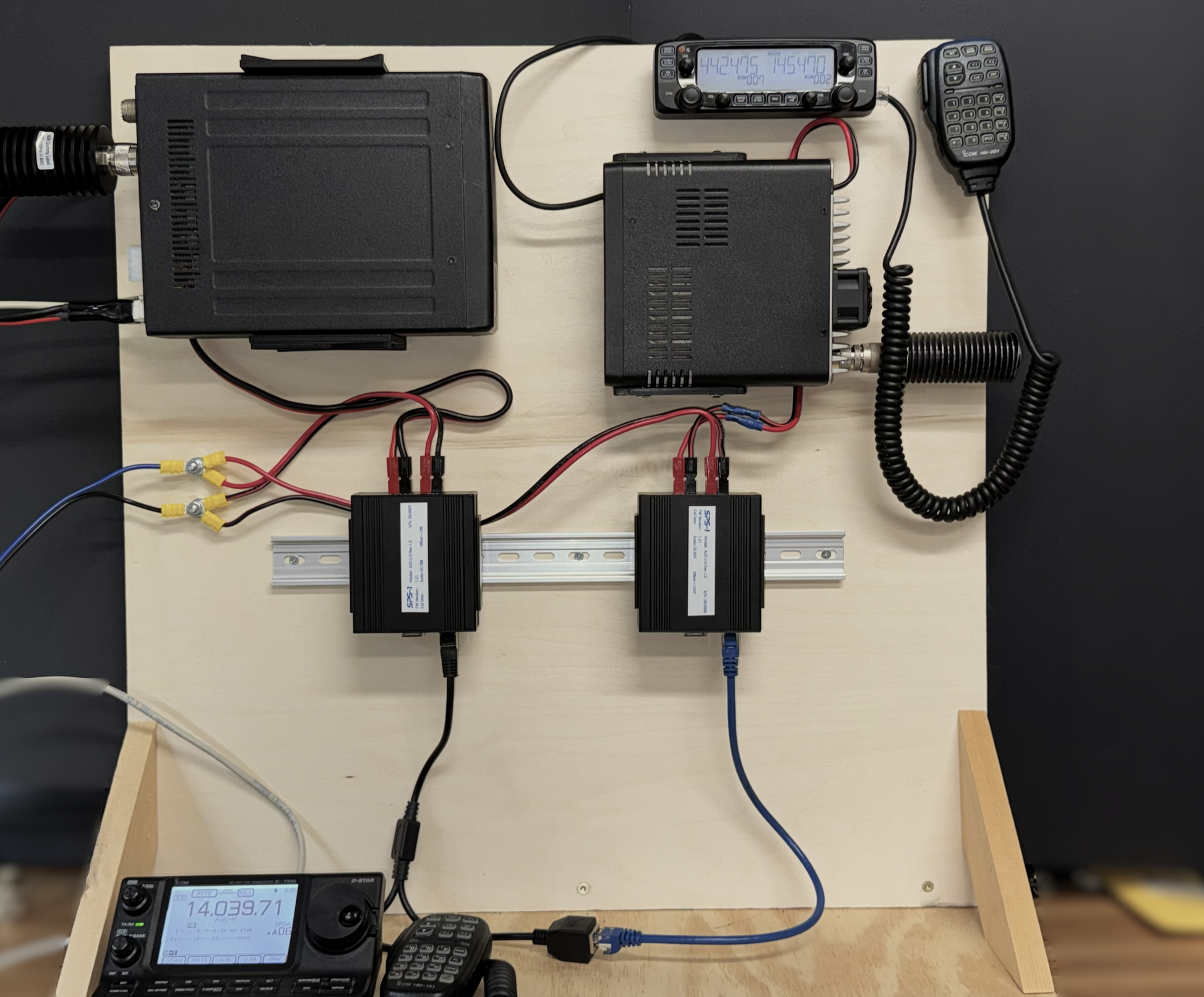

Advanced users can connect via RS-485 and use the Sierra Radio Systems DCN protocol for full remote control, real-time telemetry, and complete parameter configuration, all backed by a free browser-based configuration utility. Whether you're protecting a single HF rig or building out a full station control network, the SPS-1 is a smart, versatile upgrade over any fuse or breaker in your setup.

Click Here to download the User Manual
